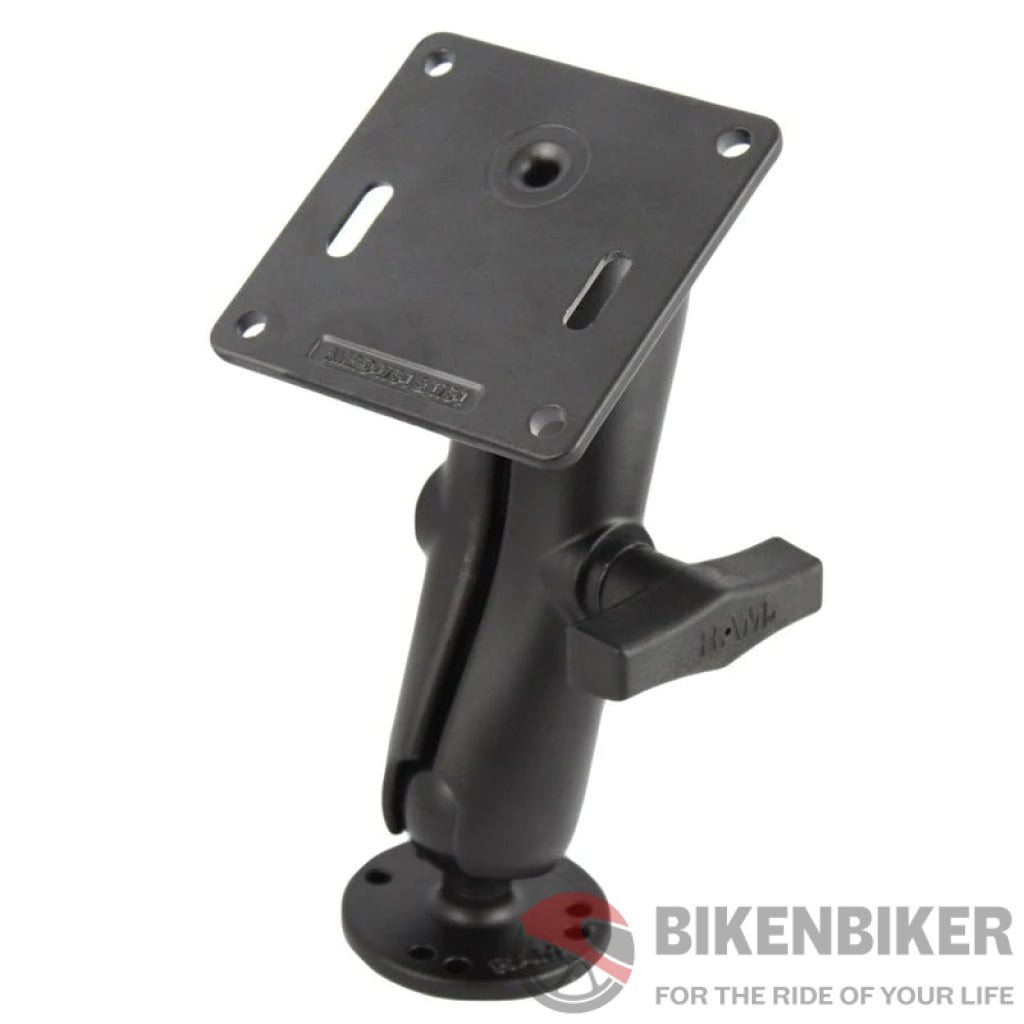

RAM - Double Ball Mount with 75x75mm VESA Plate

The RAM-101U-2461 includes a STANDARD period double socket arm, a 2.5" diameter spherical base with the common AMPS hollow pattern, and a 3.625" rectangular plate with the VESA hollow pattern. The VESA plate carries a 75mm X 75mm hollow pattern.

Designed into the mount is a 1.5" diameter patented rubber ball and socket gadget with adjustment factors at each socket ends of the arm. Rubber ball and socket generation permit for nearly limitless adjustment and ideal viewing angles.

PRODUCT DIMENSIONS

• Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH

• 4.66"

HOLE PATTERN

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter
• See Drawing

PLATE SIZE

• VESA Plate: 3.625" x 3.625"
• Round Plate: 2.5" Diameter

BALL/SOCKET SIZE

• C Size (1.5")

WEIGHT CAPACITY

• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs

MATERIALS

• Marine-grade aluminum

WEIGHT

• 0.6kg



Part No. - RAM-101U-2461

Brand - RAM® Mounts, USA

Country of Origin: UNITED STATES OF AMERICA
Generic Name: MOTORCYCLE PARTS AND ACCESSORIES
Quantity: 1N
Country of Import: UNITED STATES OF AMERICA
Warranty: ONE YEAR FROM DATE OF INVOICE
