Engine/Sump guard for Honda CRF 1000L Africa Twin

Available on Pre-order/Back Order. Check out how that works here

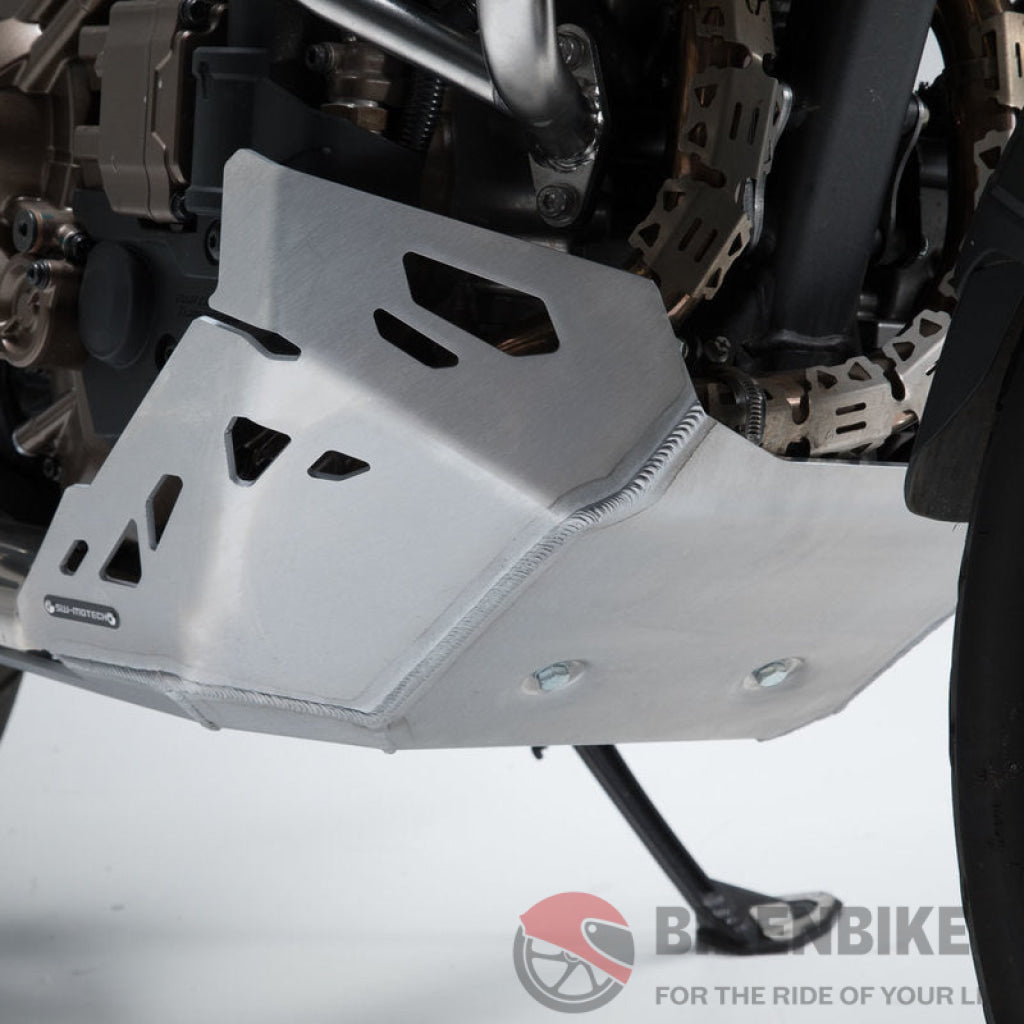

The extremely strong engineered engine guard features a 5 mm aluminium bottom structure and offers complete protection of the engine block. The engine guard is built with precision-manufactured mounts that fit directly into the existing frame mount, creating a robust connection that distributes the forces not only to the mounting points but also to the bike’s steel frame in case of ground contact.

• Replaces the original engine guard with a wall strength of just 2.5 mm
• Perfect protection for the bottom, header and exhaust parts from stone- chipping and ground collision
• Bottom made of 5 mm and walls of 4 mm heavy-duty aluminum
• The oversized contoured skid plate provides robust protection and a sliding surface
• Compared to the much smaller original skid plate this engine guard also protects header and exhaust parts
• 8 mm strong rubber sliders absorb and distribute impact forces
• Oil change does not require removal of engine guard - cutouts allow access to both oil drain screws
• The design with integrated cutouts guarantees airing and maximizes ground clearance
• Compatible with original Honda side stand and SW-MOTECH center stand (optional accessory)
• Fits all Honda CRF 1000L Africa Twin versions (Standard / ABS / DCT) except version DCT with gear lever
• Material: highly durable aluminum alloy with a wall strength of 4 and 5 mm
• Weight: 3.5 kg

Included:

• Engine guard
• Mounting material
• Mounting instructions

Recommendation:

Provide absolute protection for motor with engine guard, crash bars and engine guard extension mounted to the center stand engineered by SW-MOTECH.



Part No. - MSS.01.622.10002/S

Brand - SW-Motech, Germany

Country of Origin: CZECH REPUBLIC
Generic Name: MOTORCYCLE PARTS AND ACCESSORIES
Quantity: 1N
Country of Import: CZECH REPUBLIC
Warranty: ONE YEAR FROM DATE OF INVOICE
Importer Address: Ground Floor No.3, 1st Main Rd, 4th Block, HBR Layout, Bengaluru, Karnataka 560043
