Plug-n-Play CANsmart™ Controller For KTM -Denali-DNL.WHS.21700

Harness the flexibility and intelligence of your CANbus electrical system to make installation of accessories drastically easier with the new and improved Denali CANsmart Controller GEN II.

The Denali CANsmart Controller provides plug-n-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled right from your switch cluster or the CANsmart Accessory Manager Software.

The CANsmart’s four circuits are preprogrammed to connect and independently control two sets of Denali lights, a SoundBomb horn, and our B6 auxiliary brake light.

It features –

High/Low Sync – Set auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.

ON/OFF and Dim – Independently control two sets of lights ON/OFF and change intensity level (for both day and night) right from your original vehicle switches.

Modulate Lights – Set auxiliary lights to modulate to increase your visibility to other motorists.

Flash to Pass – Need to get someone’s attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.

Cancel With Turn Signal – This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal.

Inverse Flashing With Hazards- This features flashes your auxiliary lights inversely to your hazard lights, increasing visibility during road side emergency’s.

Plug & Play Horn Installation – Quickly and easily connect high power aftermarket horns like our SoundBomb without having to add an additional harness or relay.

Strobe with Horn – With this feature selected the CANsmart software will automatically strobe your auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb horn installed.

Deceleration Activated “Smart Brake” Technology – The CANsmart reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.

Flash Pattern Braking – The CANsmart provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).

Circuit Function Selector- The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.

Switched Power Source – The CANsmart provides a universal “accessory” option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.

Delay Time Out – You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.

On Board Power – The “accessory” circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

Highlights

Integrate seamlessly with your motorcycle’s CANbus electrical system to make installation of accessories drastically easier; Consolidates all accessories into one intelligent controller and wiring harness.
Plug-and-play installation
Four circuits
Access numerous programmable accessory settings that provide intelligent control of auxiliary lights, horns, brake lights, etc.

What’s in the box?

DENALI Plug-n-Play CANsmart™ Controller – KTM 890 & New 1290 Series – GEN II x 1 Kit
Kit includes the following:

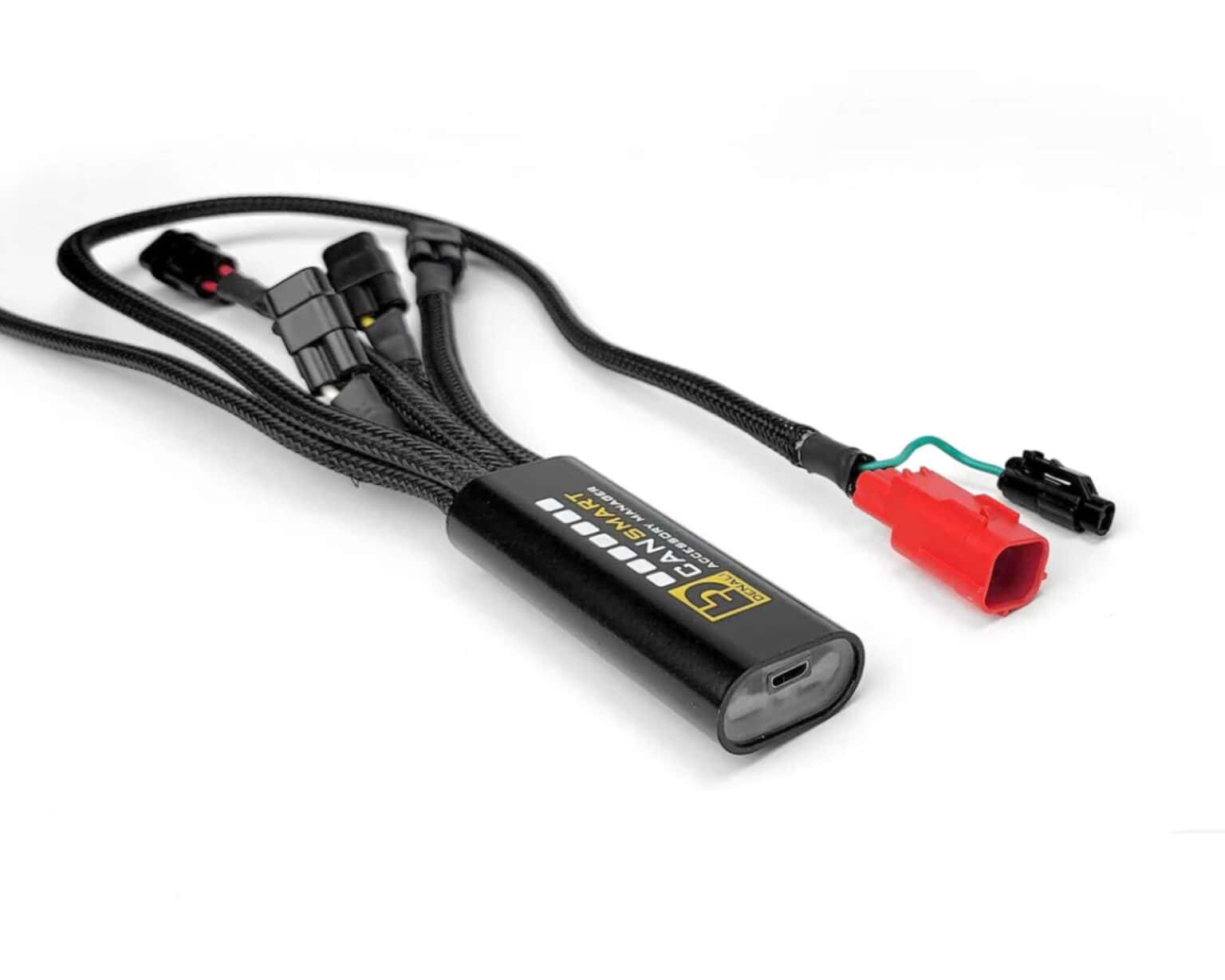

CANsmart™ Controller x 1
5ft Horn Extension x 1
5ft LED Light Extension x 2
Brake Light Pigtail x 1
Horn Input Harness x 2
Zip Tie x 4
Adhesive Dual Lock x 1
USB to Micro USB Programming Cable x 1
Installation instructions

Expansion
If you are looking to integrate two CANsmart Controllers or another accessory that requires EURO 5 port access, Denali’s EURO 5 Pass Through Adapter will help you do that.

*KTM 890 Limitations
Due to variances with the KTM 890’s factory wiring harness, the following limitations apply:
– Auxiliary Light One & Two Dimming and ON/OFF functions are not available from bikes factory controls (All dimming and light settings need to be configured in the CANsmart Accessory Manager Software)
– Turn signal circuit function not available
– Cancel auxiliary lights with turn signal feature not available
– Flash auxiliary lights as turn signal feature not available
– Auxiliary brake light activates with front brake lever only
– KTM Dongle feature not available

If dimming your auxiliary lighting on-the-fly is important to you we recommend using Denali’s DialDim Lighting Controller which enables on-the-fly dimming and control of up to two sets of aux lights. Keep in mind that both products can be installed on your 890 together, so a logical setup would be two sets of aux lights on a DialDim while your horn, brake lights, DRLs, or other accessories can be powered from the CANsmart.

Brand - Denali
